screws, barrels and other spare parts
for twin screw extruders (counter-rotating and co-rotating)
Twin screws are divided in parallel and conical configurations.

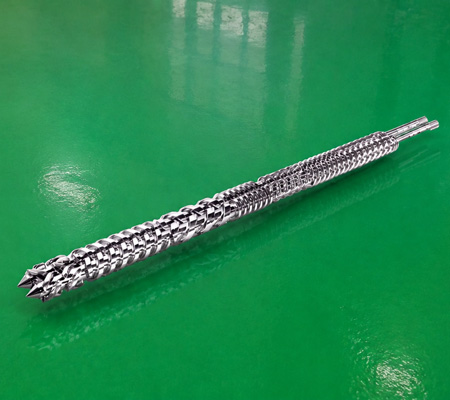

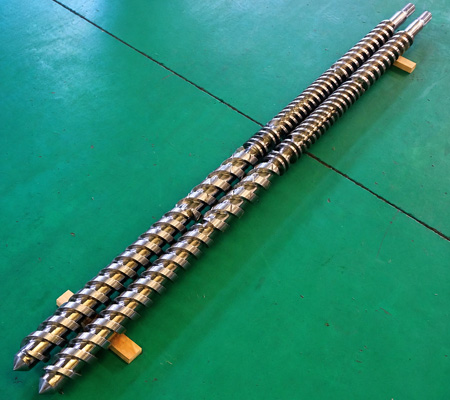

Counter-rotating twin screw extruders have two screws that spin in the opposite direction. Also often intermeshing this style of machine is usually found in the profile, PVC or wood composite industry.
These machines typically have a much lower screw rpm and generally have much smaller L/D ratios. The screw direction allows for less shear than a single or co rotating machine.
The two styles of machines within the counter-rotating extruder category known as parallel twin screw extruder and conical twin screw extruder. A parallel twin screw has a consistent barrel diameter through the entire barrel. A conical twin screw extruder has a taper. The feed section is much larger than the end of the barrel. Both counter rotating machines with often have barrel venting. The barrels and screws of these machines are not modular so they may need to be changed for your specific application.

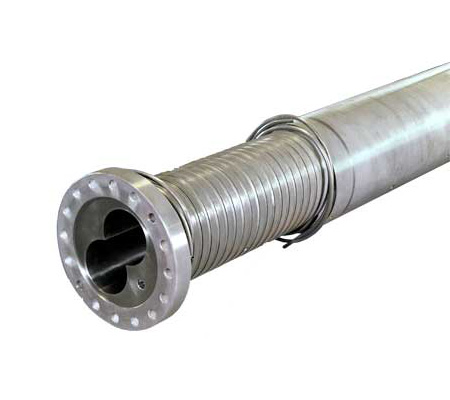

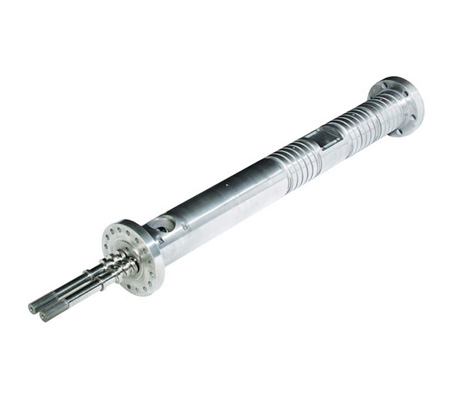

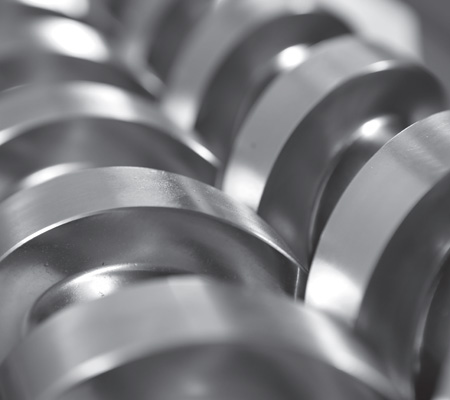

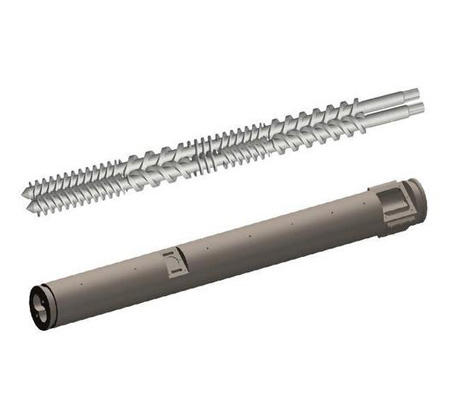

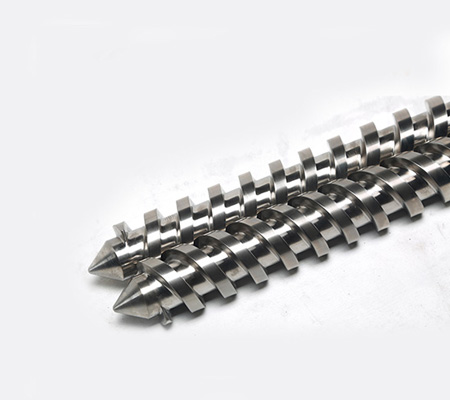

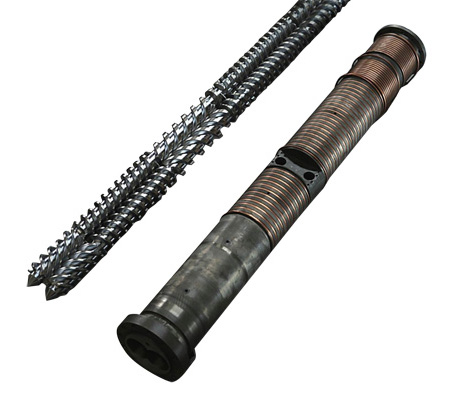

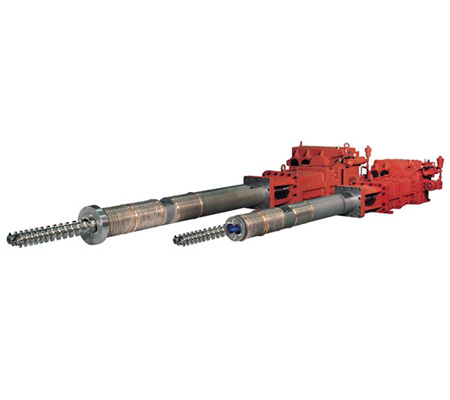

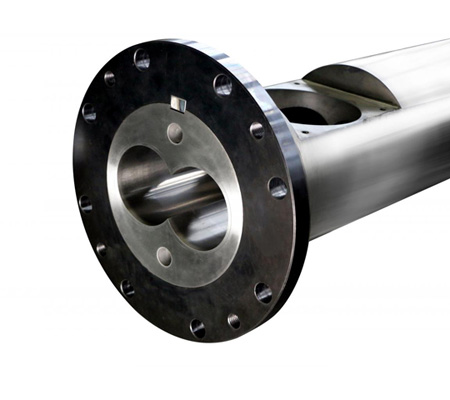

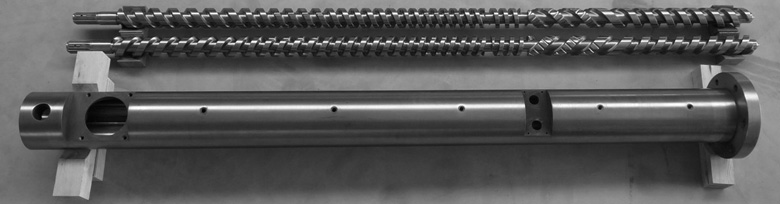

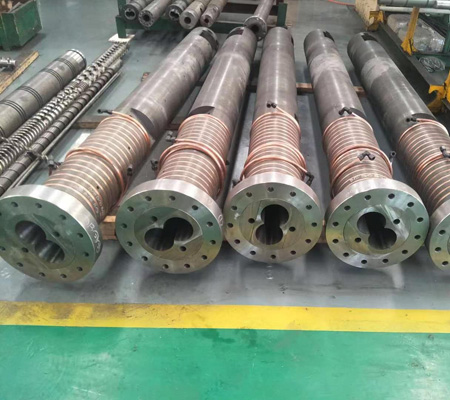

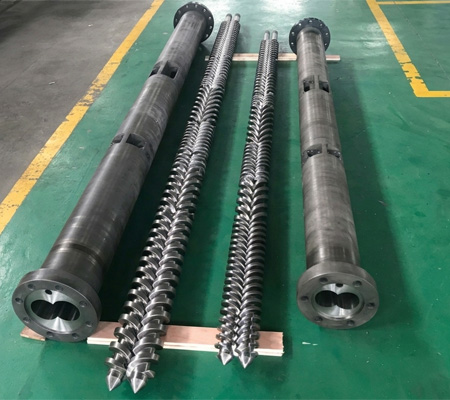

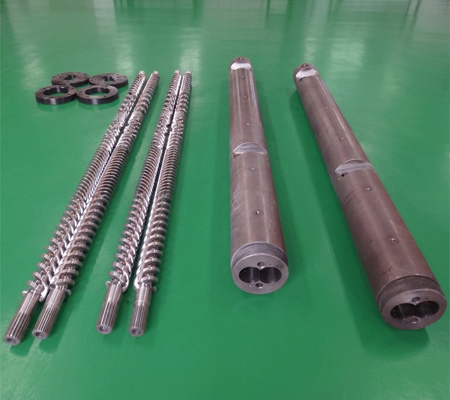

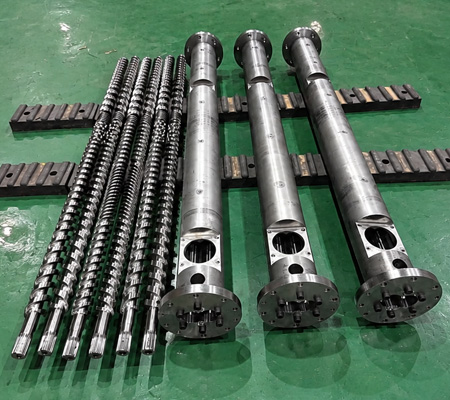

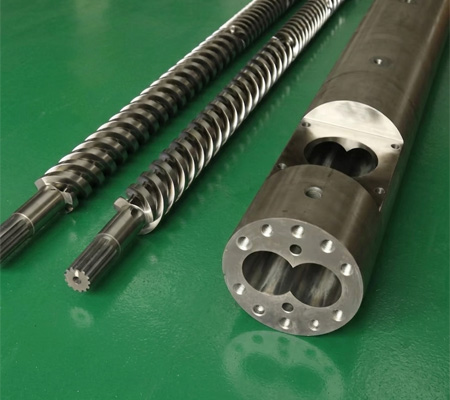

Parallel twin screws and barrels, cylinders
Base Materials:
Alloy Steel: 4140 steel(AISI 4140), Nitralloy 135M, GB 38CrMoAlA, JIS SACM645, BS EN41B, 34CrAlNi7, DIN 1.8509, DIN 1.8550, 41CrAlMo7, or equivalents.
Stainless Steel: 304, 316, 416, 17-4PH
Tool Steel: D-2, H-13, DC53, CPM 9V, CPM 10V
High Nickel Alloys: Hastelloy C-276, Inconel 625, Inconel 718
Flight Hardfacing Materials:
Nickel base: Colmonoy #56, Colmonoy #57, Colmonoy #83, Colmonoy #88
Cobalt base: Stellite #6, Stellite #12
Surface Hardenings:
Gas nitriding and Ion nitriding, Chrome plating, Carbide encapsulating, PVD coating, etc.
Machine Makes: Amut, Battenfeld, Beier, Fangli, Jwell, Liansu, Mikrosan, Milacron, Battenfield-Cincinnati, Krauss Maffei, Theysohn, Weber, etc.
Extruder models:
Battenfeld: 2-50-16V, 2-65-22V, 2-68-28V, 2-90-25V, 2-92-28V, 2-107-25V, 2-110-28V, 2-130-25V, 2-135-28V, 2-168-28V
Mikrosan: MCV 55/20D, MCV 67/17D, MCV 67/20D, MCV 67/22D, MCV 67/24D, MCV 68/25D, MCV 75/25D, MCV 90/20D, MCV 90/23D, MCV 90/26D, MCV 90/33D, MCV 110/25D, MCV 110/28D, MCV 135/25D, MCV 135/33D
Theysohn: PAR 2-88, PAR 2-108, PAR 2-130; TTS 78R-26, TTS 88R-24, TTS 88R-26, TTS 108R-24, TTS 108R-26; TTS 78P-26, TTS 88P-24, TTS 88P-26, TTS 108P-21, TTS 108P-24, TTS 108P-26; PAR 88, PAR 108, PAR 130
American Maplan: TS 88, TS 92, TS 100, TS 110, TS 135
Kabra Extrusiontechnik(KET): Kabra 2-52-18V, Kabra 2-52-25V, Kabra 2-65-18V, Kabra 2-65-22V, Kabra 2-68-28V, Kabra 2-72-28V
extrusión doble husillo paralelo contrarrotante, cámaras de extrusión doble husillo paralelo, husillos de extrusión paralelos
cámaras bimetálicas, cámaras nitruración, husillos nitruración, husillos bimetálicos, etc.
Extrusoras doble tornillo, cónicos o paralelos, co-rotantes y contra-rotantes para la producción de compuestos, extrusión reactiva, perfiles, planchas.
Mantenimiento general a maquinas extrusoras.
Mantenimiento de la unidad de plastificación de extrusoras.
Tornillos extrusores
Barriles de extrusión
Boquillas de extrusión.
Mantenimiento preventivo de las extrusoras
coppie di viti controrotanti parallele
